UV Sterilizer Features
1.Fast
It takes a few seconds to sterilizing and disinfection at 99.99%.
2.No Two Pollution
UV water sterilizer will not use any chemicals, so it will not pollute the water source.
3.UV Lamp Long Service Life
UV lamp uses 9000 hours , and UV stainless steel chamber overall life of up to 15 years.
4.Broad-spectrum Bactericidal
In the existing sterilization technology, UVC technology has the highest spectrum bactericidal capacity. It can kill almost all bacteria and viruses, and can also kill harmful parasites (such as Cryptosporidium and Giardia), which can not be killed by chlorine or ozone.
5.Wide Range of Applications
UVC technology has a wide range of applications. It can disinfect fresh water, sea water, drinking water and waste water. ultraviolet water sterilizer can be applied in a wide range of water .
6.Advanced Technology
Ultraviolet water sterilizer technology and efficient production by exposure to intense ultraviolet light in the ultraviolet housing, high strength and long life, special design technology, modern preventive medicine, optics, mathematics, biology and physical chemistry based on.
Learn more UV Water Sterilizer Contact us on +86-311-89906694 or email: sales@uv-ozonechina.com
|
|
Flow Rate @ 30mj/cm²
|
|
|
Reactor Size (mm) |
|||
|
Model |
GPM | TPH |
Lamp Watts |
Inlet/outlet Port |
L | W | H |
| UMK-RUV- 4 | 0.3 | 0.07 | 4 |
1/4" F Thread |
200 | 51 | 70 |
|
UMK-RUV-6 |
0.5 | 0.12 | 6 |
1/4" F Thread |
260 | 51 | 70 |
|
UMK-RUV -11 |
1 | 0.23 | 11 |
1/4" F Thread |
260 | 51 | 70 |
|
UMK-RUV-16 |
2 | 0.45 | 16 |
1/2" M Thread |
375 | 63 | 80 |
|
UMK-RUV-25 |
6 | 1.4 | 25 |
1/2" M Thread |
518 | 63 | 90 |
|
UMK-RUV-30 |
8 | 1.8 | 30 |
3/4" M Thread |
975 | 63 | 90 |
|
UMK-RUV-40 |
10 | 2.3 | 40 |
3/4" M Thread
|
890 | 63 | 90 |
|
UMK-RUV-40 |
12 | 2.7 | 40 |
1" M Thread
|
920 | 63 | 90 |
|
UMK-RUV-55 |
12 | 2.7 | 55 |
3/4"
M Thread
|
975 | 63 | 90 |
|
UMK-RUV-80 |
24 | 5.5 | 80 |
1"
M Thread
|
950 | 63 | 90 |
*The above parameters are only for reference. We conserve all rights of parameter modification without prior notiication.
UV Light
Utraviolet output at 254 nm is called Ultraviolet rays. UVC ray inactivated all known microorganisms, bacterial capabilities, pathogens, viruses and molds, including resistant microorganisms such as Cryptosporidium and Giardia. UV dosimetry in mJ/cm2. The system is usually sized in two ways:
1. Provides a minimum level of UV intensity. This ensures that the UV intensity (UVC light source) at the farthest position size from the UV lamp is the minimum UV system will be provided. This UV dose is called the wall dose.
2. The average
dose takes into account the wall dose (the farthest distance from the UV lamp) and the area immediately before the UV light, and the UV output is the maximum. Size calculation method calculates the average dose of the system.
Ultraviolet System
Size of UV Water Sterilizer is based on the quality of the water. An ultraviolet water sterilizer for sizing. Water quality is measured by UVT (UV transmittance). This measures the transparency of water relative to distilled water (which is believed to be 100%). Specifically, this property is measured using a quartz cuvette at a fixed wavelength of 254 nm. If water is of high quality, such as well water, the UTV will be about 95% higher inhibition. If water is of low quality, such as river water, the UVT will be about 80% less inhibited. It should be noted that a drop of several percent of UVT can be of double UV intensity required to provide disinfection of importance.
|
Typical Application |
Typical UVT % |
Normal Required Dose |
|
Drinking Water |
90% - 95% |
25 mJ/cm2 RED - 40 mJ/cm2 RED |
|
Waste Water |
50% - 80% |
30 mJ/cm2 Wall Dose |
|
Swimming Pools |
94% |
60 mJ/cm2 Average |
|
Aquaculture |
85% - 90% |
320 mJ/cm2 Average |
|
Rain Water Harvesting - Irrigation |
80% - 85% |
150 mJ/cm2 Wall Dose |
|
Rain Water Harvesting - Process |
80% - 85% |
30 mJ/cm2 Wall Dose |
|
Process Water - Towns Mains |
90% |
30 mJ/cm2 |
|
Make-up Water - Towns Mains |
90% |
30 mJ/cm2 |
|
Cooling Loops |
70% - 90% |
30 mJ/cm2 |
UV Water Sterilizer Benefit
Wide range of bactericidal effect, the most effective protection
Modular inlet and outlet and sizes to meet your requirements
Water treatment is effective monitoring and fully automatic
Simple operation and maintenance
Very
low pressure loss
Authentication
CE、 UL、SIFF、ISO

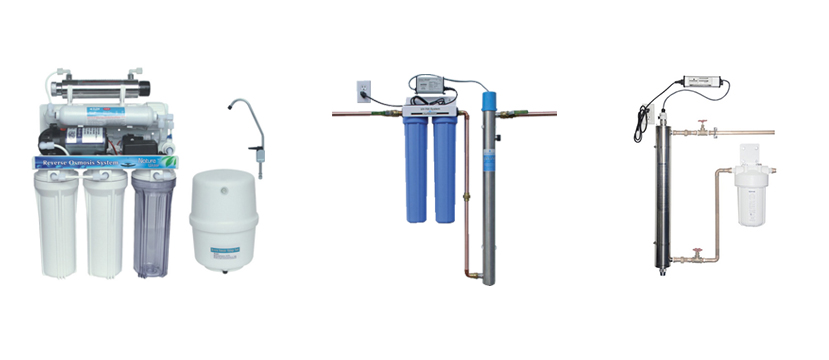

UV Water Sterilizer Application
If you are interested in Residential UV Water Sterilizer(Ultraviolet Water Sterilizer) , please do not hesitate to Contact Us.email: sales@uv-ozonechina.com
