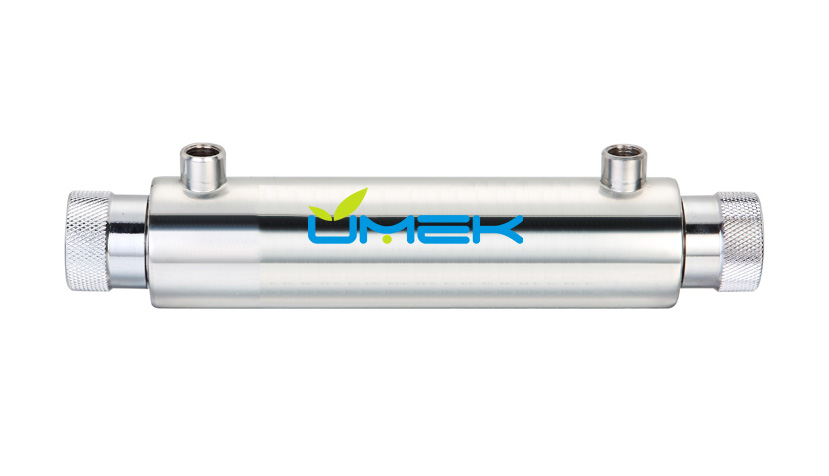

Waste Water UV Water Treatment (Ultraviolet Water System)

Waste Water UV Water Treatment (Ultraviolet Water System)

 Ultraviolet disinfection technology is very expeditious in destroying bacteria. UV energy can destroy bacteria and virus in just about 1-5 seconds. In order to reach the same disinfection effect, it costs about 30 minutes or more contact time by use other chemical methods (Chlorine, Ozone, Chlorine Dioxide).
inquiry Catalog download
  • Detail

Product

Ultra Violet System SDE 6W 11W

In twentieth Century 7O years later, people found that the traditional chlorine disinfection will produce carcinogenic, teratogenic, mutagenic haloalkanes and other by-products, and ultraviolet disinfection method is not adding chemicals, do not increase the water smell and taste, no by-products, toxic and harmful is not affected by the characteristics of temperature and pH value, influence small, covers an area of high sterilization speed, high efficiency, simple equipment, easy operation and management and automation etc.
With climate change and growing environmental awareness driving sewage discharge standards and water reuse initiatives, UV water treatment is rapidly becoming a "must" process for many wastewater streams.




Flow Rate @30mj/cm²





Reactor Size ( mm )
Model GPM TPH Lamp Watts Lamp QTY Inlet/outlet Port L W H
UMK-WUV-160 44 10 40 4 G1 1/2" M Thread
920 159 300
UMK-WUV- 200
53 12 80 2 DN50 920 101 300
UMK-WUV-240
88 20 80 3 DN65
920 133 320
UMK-WUV- 320
110 25 80 4 DN80
975 159 380
UMK-WUV- 360
132 30 120 3 DN80
1350 159 380
UMK-WUV- 480
154 35 80 6 DN100
920 219 400
UMK-WUV- 600
176 40 120 5 DN100
1250 159 580
UMK-WUV- 620
198 45 155 4 DN100
1660 159 380
UMK-WUV- 720
220 50 120 6 DN100
1250 168 530
UMK-WUV- 775
242 55 155 5 DN100
1660 219 550
UMK-WUV- 930
286 65 155 6 DN125
1660 219 530
UMK-WUV- 1085
330 75 155 7 DN125
1660 219 480
UMK-WUV-1240
420 95 155 8 DN125
1660 219 480
UMK-WUV-1600
490 110 320 5 DN150
1660 280 550
UMK-WUV-1920
660 150 320 6 DN200
1660 300 550

*The above parameters are only for reference.   We conserve all rights of parameter modification without prior notiication .


UV technology is the disinfection technology, it is a major method of disinfection of wastewater. UMEK UV technology for the sewage treatment industry has identified a series of compact enclosed indoor UV water systems, which are easy to install to a pipe, and UV installations are available in many different wastewater treatment plant.


Learn more  Waste Water UV Water Treatment (Ultraviolet Water Treatment System)  , Contact us on +86-311-89906694 or email:    sales@uv-ozonechina.com

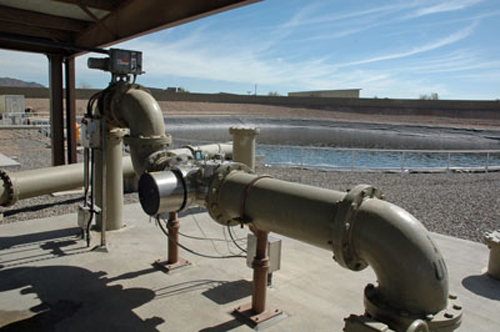

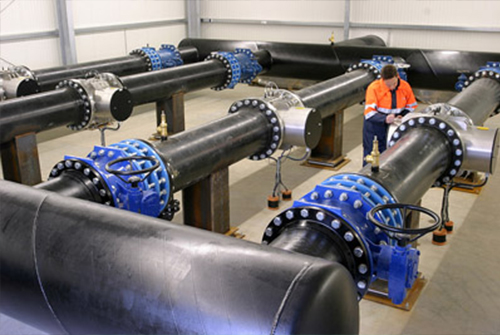

Industrial Wastewater UV Treatment


Industrial Wastewater UV Treatment

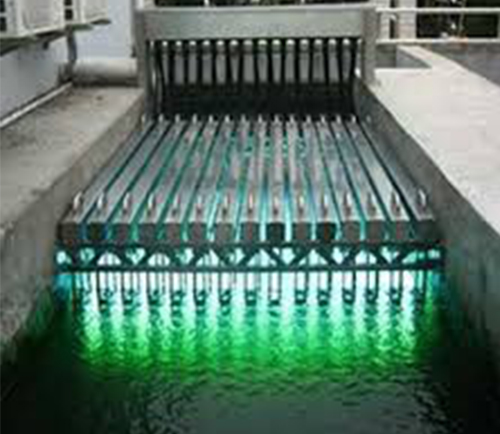

Municipal Wastewater UV System
