Industrial UV Water System

Industrial UV Water System

 Ultraviolet disinfection technology is very expeditious in destroying bacteria. UV energy can destroy bacteria and virus in just about 1-5 seconds. In order to reach the same disinfection effect, it costs about 30 minutes or more contact time by use other chemical methods (Chlorine, Ozone, Chlorine Dioxide).
inquiry Catalog download
  • Detail

Product

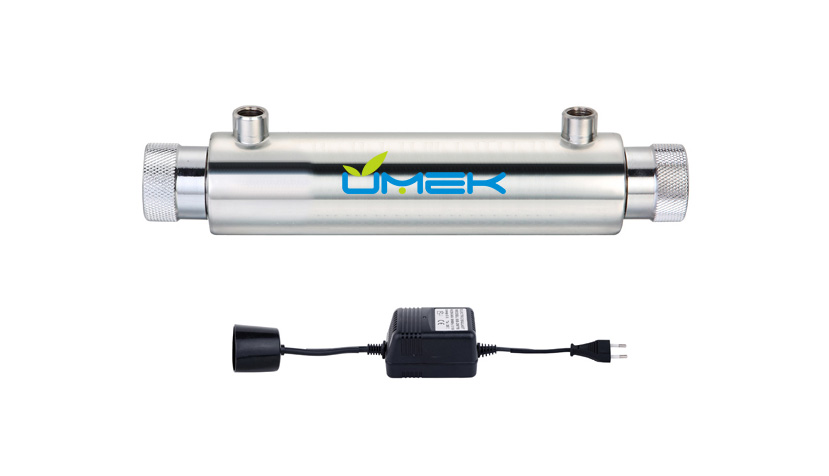

Ultra Violet System SDE 6W-11W-12W

UV Sterilizer Features

1.Fast

It takes a few seconds to sterilizing and disinfection at 99.99%.

2.No Two Pollution

UV water sterilizer will not use any chemicals, so it will not pollute the water source.

3.UV Lamp Long Service Life

UV lamp uses 9000 hours , and UV stainless steel chamber overall life of up to 15 years.

4.Broad-spectrum Bactericidal

In the existing sterilization technology, UVC technology has the highest spectrum bactericidal capacity. It can kill almost all bacteria and viruses, and can also kill harmful parasites (such as Cryptosporidium and Giardia), which can not be killed by chlorine or ozone.

5.Wide Range of Applications

UVC technology has a wide range of applications. It can disinfect fresh water, sea water, drinking water and waste water. ultraviolet water sterilizer can be applied in a wide range of water .

6.Advanced Technology

Ultraviolet system technology and efficient production by exposure to intense ultraviolet light in the ultraviolet housing, high strength and long life, special design technology, modern preventive medicine, optics, mathematics, biology and physical chemistry based on.
UV disinfection and disinfection have become standard in many water treatment industries, including municipal drinking water and wastewater treatment, industrial production and manufacturing, aquaculture and marine water treatment. UV water systems are designed to ensure that water is free from harmful microorganisms. UV is a proven, standardized and environmentally friendly technology.
UMEK designed and developed a wide range of UV systems specifically for municipal drinking water and wastewater treatment applications


please contact our sales team on:  +86-311-89906694  or email:  sales@uv-ozonechina.com




Flow Rate @ 30mj/cm²





Reactor Size (mm)

Model

GPM TPH

Lamp Watts

Lamp   QTY

Inlet/outlet Port

L W H
UMK-RUV-80 24 5.5 40 2 G1 1/4" M Thread
920 100 233
UMK-RUV-120
35 8 40 3 G1 1/2" M Thread
920 159 300
UMK-RUV-160
44 10 40 4 G1 1/2" M Thread
920 159 300
UMK-RUV-200
53 12 80 2 DN50
920 101 300
UMK-RUV-240
88 20 80 3 DN65
920 133 320
UMK-RUV-320
110 25 80 4 DN80
975 159 380
UMK-RUV-360
132 30 120 3 DN80
1350 159 380
UMK-RUV-480
154 35 80 6 DN100 920 219 400
UMK-RUV-600
176 40 120 5 DN100
1250 159 580
UMK-RUV-620
198 45 155 4 DN100
1660 159 380
UMK-RUV-620
220 50 120 6 DN100
1250 168 530
UMK-RUV-620
242 55 155 5 DN100
1660 219 550
UMK-RUV-620
286 65 155 6 DN125
1660
219 530
UMK-RUV-620
330 75 155 7 DN125
1660
219 480
UMK-RUV-620
420 95 155 8 DN125
1660
219 480
UMK-RUV-620
490 110 320 5 DN150
1660
280 550
UMK-RUV-620
660 150 320 6 DN200
1660
300 550

*The above parameters are only for reference.  We conserve all rights of parameter modification without prior notiication.

Industrial UV Water System

Benefits of UV Water System:

Ultraviolet system not cause two pollution.

Very low operating and maintenance requirements.
Compact size and low weight solutions.
Eliminate chemical transport, storage, and handling.
Green environmental technology.
Safe, low-risk technical operations.
Reduce operating costs compared to other available technologies.
UV Water System Benefit.
Wide range of bactericidal effect, the most effective protection.
Modular inlet and outlet and sizes to meet your requirements.
Water treatment is effective monitoring and fully automatic.
Simple operation and maintenance.
Very low pressure loss.

Authentication

CE、 UL、SIFF、ISO

UV Water Sterilizer Application

Soilless Culture Water Treatment


Soilless Culture Water Treatment


Drinking Water UV System


Drinking Water UV System

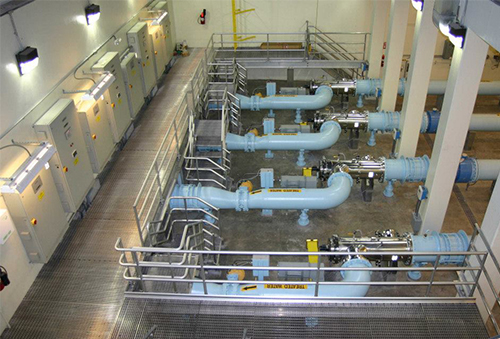

Municipal Water Treatment Plant


Municipal Water Treatment Plant


If you are interested in  Commercial UV Water System , please do not hesitate to Contact Us.email:  sales@uv-ozonechina.com
